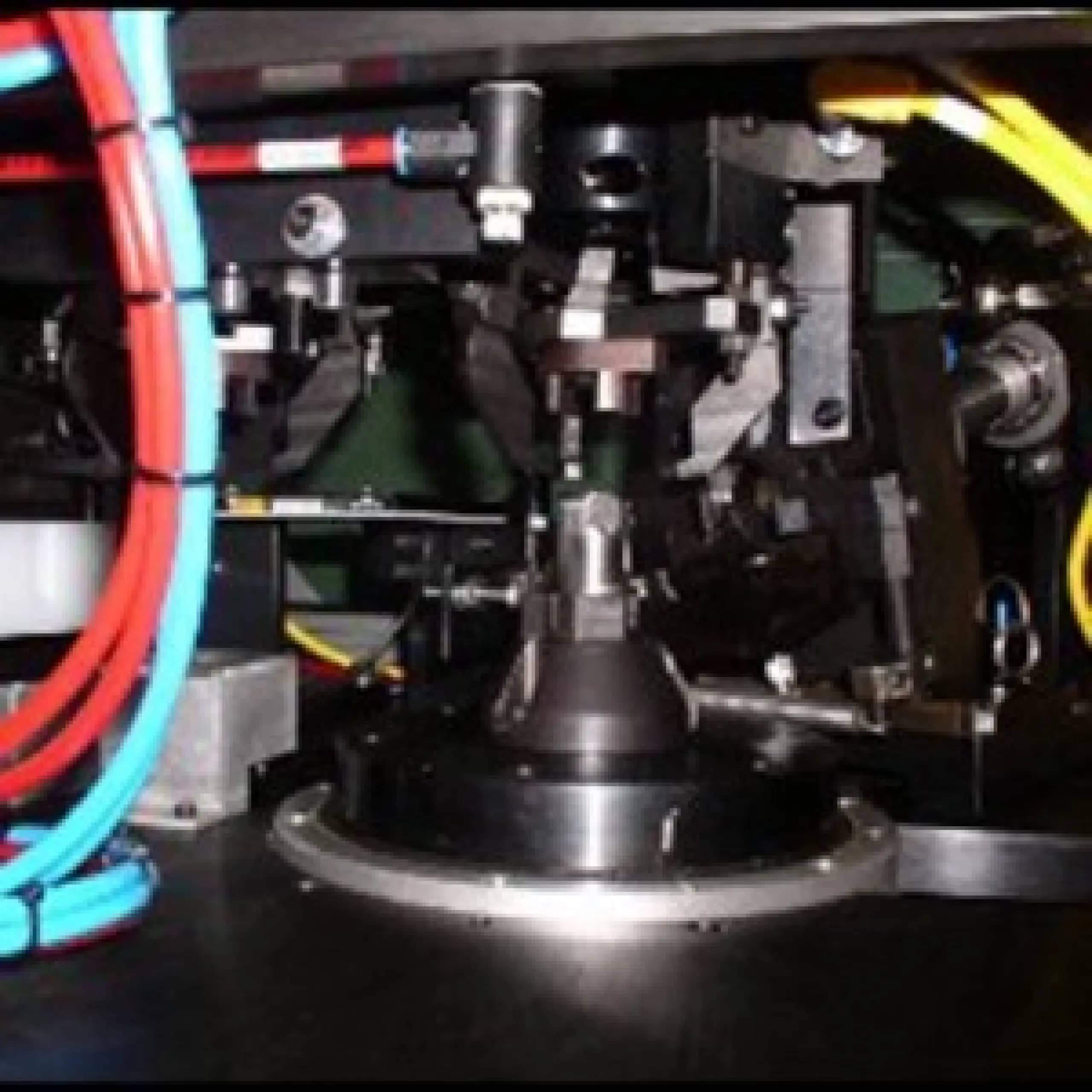

Spider Bearing Assembly Machine

Customer product is a vehicle drive shaft; component part consists of 3 radial bearings that are hydraulically pressed onto a spider gear.

Solution

Build a machine to assemble Spider Bearings

Project Features

• 1200 parts per hour

• Spider gears magazine loaded

• Bearings fed by elevator hopper

• Bearings hydraulically pressed onto gear

• Vision system confirms part positioning

• Auto accept/reject shuttle

• Discharge conveyor
