Robotic Palletizing System

Scope:

A leading manufacturer of builder products requested AAE North America to design, develop, and install an end-of-line robotic palletizing system for strapped bundles of nail plates.

Part/Product:

Zinc-plated steel nail plates bundled and strapped together in sets of 20 each. Nail plate sizes vary from 3”x4” all the way to 10”x16” for a total of 36 recipes.

Performance:

Maintaining four lanes of 40” length each with the capacity to build, pick, and place each lane of bundles on average every 15 seconds.

Sequence of Operation:

  • Inbound nail-plate bundles are transferred from the strapping machines via a flat-belt magnetic conveyor

  • Each of the four lanes has a custom-built steel table with two side-shifting inclined gravity conveyors

  • One incline conveyor builds buffer while the other serves as a pick zone for the robot

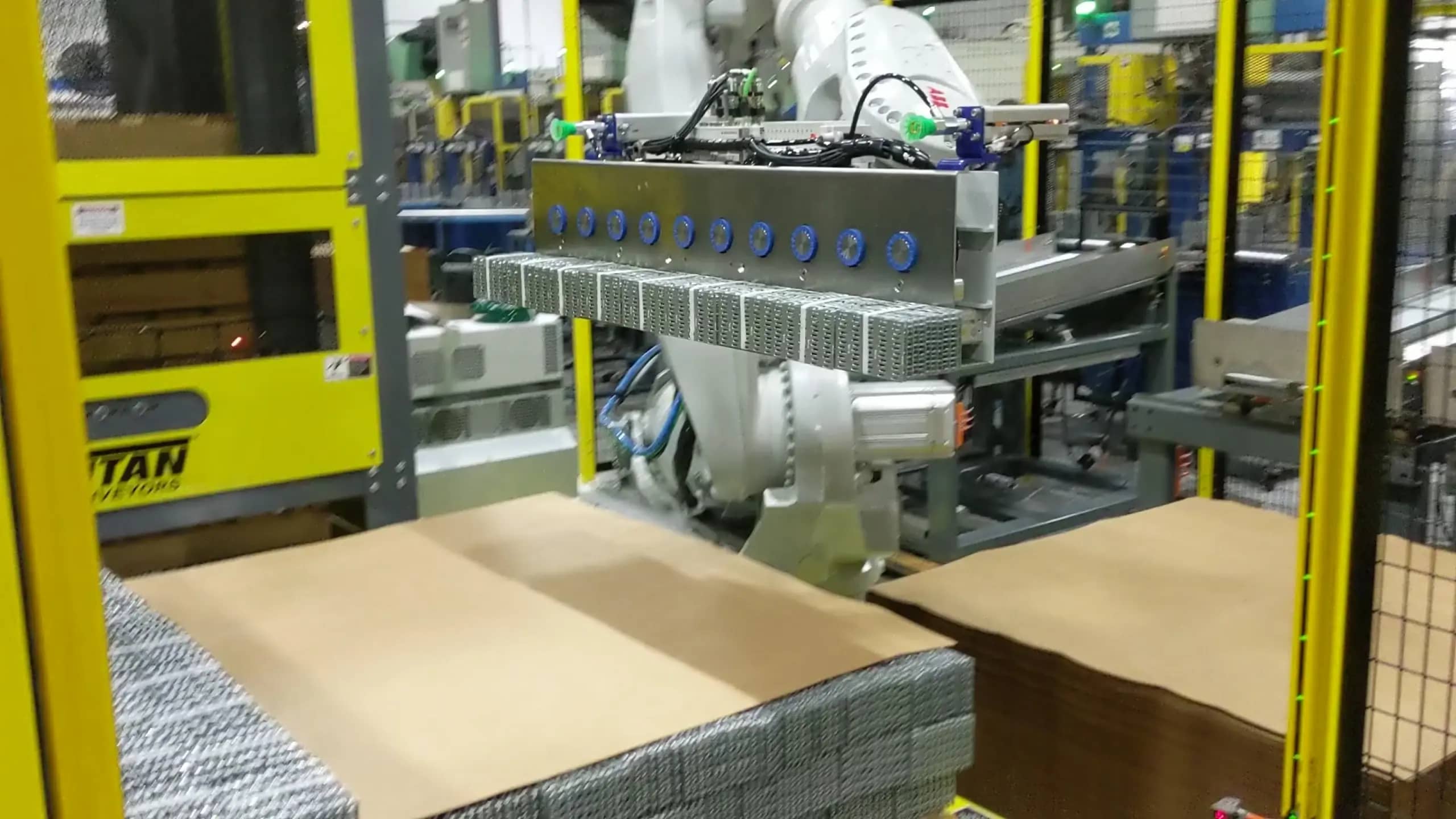

  • The End of Arm Tool handles an entire pallet row of product at a time

  • Before every pick the robot compresses the row of nail plates together

  • The robot picks and places a slip sheet before starting a new layer

  • Pallet are loaded while on a chain-driven roller conveyor that also brings in new pallets and outputs finished pallets, so a full pallet is conveyed out of the system at the same time a new pallet is rolled in

  • New pallets are automatically dispensed onto the roller conveyor by a pallet dispenser

  • The robot starts each pallet cycle by placing a slip sheet before putting the first row of nail plate bundles

The system can run unattended as long as the slip sheets last. An operator has to stop the system, open the interlocked door and change the slip-sheet pallet. Pallets can be loaded into the pallet dispenser without stopping the system.

Key Features:

The robotic system was placed in-line with the existing mechanical press, four bundling lanes, and strapping machines. Highlighted features were:

  • Incorporating four in-line pick zones that allow buffer build up without stopping or slowing down the press feeding system

  • Designing a single End of Arm Tool (EOAT) capable of handling up to 36 different size nail plates without any physical tool changes

  • Developing an inhouse cable management system for the complex moves of the EOAT

  • Programming robot moves to create a tightly packed stack since the customer needed to move the pallet with a forklift to a central stretch-wrapping station

Components

The system consisted of:

  • 6-axis ABB IRB 6700 Robot with a rated payload of 155 kg and reach of 2.85m

  • Custom magnetic EOAT developed in collaboration with Schmalz

  • Pallet dispenser with a hydraulic lift and a capacity to hold 12 pallets from Titan Conveyors

  • 12’ long 4’ wide chain driven pallet conveyor from Titan Conveyors

Controls:

  • Turck TX500 HMI PLC with custom User Interface for selecting recipes and number of layers

  • Allen Bradley Powerflex 525 VFD and Phoenix Contact SS Motor Starters

  • Thru-beam sensors from IFM

Pneumatics:

  • All pneumatic components from SMC

Safety components:

  • 8’ tall modular machine guarding from Folding Guard

  • Safety light curtains and laser sensors from Keyence

  • Slip-sheet pallet access door interlock switch from Schmersal
