Automotive Component Robotic Work Cell

Customer needed work cell to stake drive shaft components of different sizes. The work cell had to automatically load, stake, and unload parts. Easy tooling set-up and system transport was necessary.

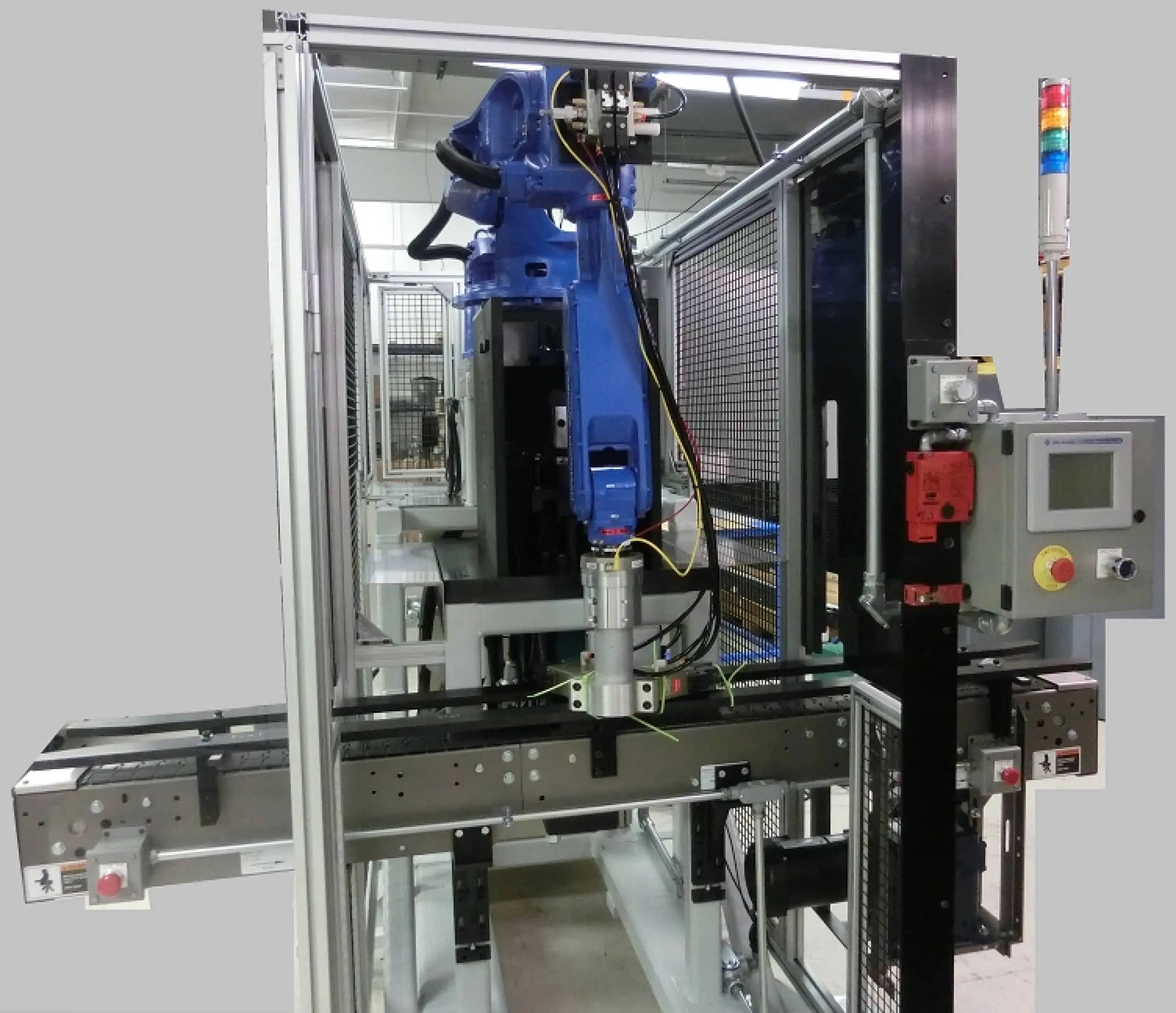

AAE North America designed a frame that integrates press, conveyor, controls, and guarding. Drive shafts convey into and out of work cell by steel cleat conveyor. Motoman robot with dual end-of-arm tooling loads and unloads press.

Features

• Tox 25 ton air-over oil press

• Motoman HP20D robot with controller

• Change out tooling supports various product sizes

• Universal end of arm tooling with dual grippers

• Universal conveyor rails

• Allen Bradley HMI/PLC controls
